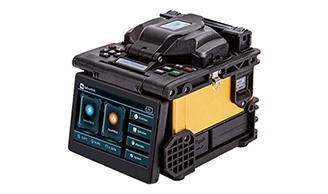

The premium quality Multicom NT-A9L-EL Core alignment, Clading alignment, Fine alignment, and Manual alignment Fiber Optic Fusion Splicer is drop/impact, dirt/dust, and water-resistant.
This 6-motor fusion splicer employs high-speed image processing and special positioning technology allowing the fusion splicing to be completed in as little as a FAST 8 seconds. The splicer is compact, lightweight, and ideal for working just about anywhere, including harsh outdoor environments and dark and remote worksites.
What makes this fusion splicer stand out is it has SIX MOTORS. Why 6 motors?
- 2 Driving Motors
- 2 Aligning Motors
- 2 Focusing Motors – These motors are not included in 4 Motor Fusion Splicers
The two additional Focusing Motors are installed on the optical lens. The motors will change the distance between the fiber and lens to make an enhanced focusing image. Once the fiber is placed in the holders, the motors will drive the lens closer or further away from the fiber so that the fiber image will be displayed differently visually on the monitor. Then the software will process the image and auto-ID the fiber type.
For instance, if a user puts a Singlemode fiber in the left holder of the splicer and a Multi-mode fiber in the right holder, after closing the cover, the auto-focusing kicks in – based on the reflection ratio, the preset software will identify the fiber type and the 6-Motor Fusion Splicer will give a warning that there are two different and incompatible fiber types about to make a fusion.
