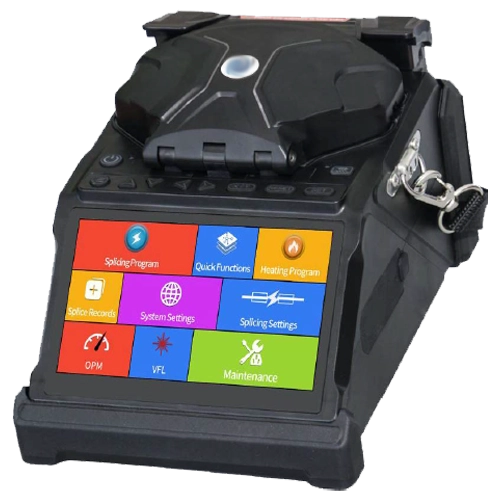

The premium quality Multicom NT-A3-EL and NT-A3PLUS-EL Core alignment, Cladding alignment, Fine alignment, and Manual alignment Fiber Optic Fusion Splicer is drop/impact, dirt/dust, and water-resistant.
This 6-motor fusion splicer employs high-speed image processing and special positioning technology, allowing the fusion splicing to be completed in as little as a FAST 8 seconds. The splicer is compact, lightweight, and ideal for working just about anywhere, including harsh outdoor environments and dark and remote worksites.
What makes the NT-A3-EL and NT-A3PLUS-EL fusion splicer stand out is it has SIX MOTORS. Why 6 motors?
- 2 Driving Motors
- 2 Aligning Motors
- 2 Focusing Motors – These motors are not included in 4 Motor Fusion Splicers
The two additional Focusing Motors are installed on the optical lens. The motors will change the distance between the fiber and lens to make an enhanced focusing image. Once the fiber is placed in the holders, the motors will drive the lens closer or further away from the fiber so that the fiber image will be displayed differently visually on the monitor. Then the software will process the image and auto-ID the fiber type.
